Factory Direct Ultra-clear Intelligent 55-inch embedded transparent oled touch screen

Name: Factory Direct Ultraclear Intelligent 55inch embedded transparent oled touch screen
Brand: ZXTLCD
Price: 1 USD

Quality Factory Direct Ultra-clear Intelligent 55-inch embedded transparent oled touch screen for sale

Brand Name : ZXTLCD

Model Number : ZXTLCD-OLED055E001

Certification : CE/Rohs/FCC

Place of Origin : Guangdong, China

MOQ : 1

Price : negotiable

Payment Terms : L/C,T/T,MoneyGram,Western Union

Supply Ability : 2000 pcs per month

Delivery Time : 3-5 working days

Packaging Details : wooden case, carton, flight cases are optional

Screen Size : 55 inch

Type of backlight : OLED self-luminous

Resolution : 1920*1080

refresh rate : 120Hz

Panel transparency : 43%

Standard colours : 1.07B 10Bit

Appearance Color : White/Black/Customization

Brightness : 200-600 (nits)

Contrast ratio : 8ms

Viewing Angle : 178 °, 178 °

Audio system : Built-in 10 W X 2 Speakers

Built-in wifi : 150Mbps 802.11n wifi integate

OS : Android or Windows optional

Touchscreen type : Projected Capacitive Touch screen

Touch points : 10 points

CPU : 14th Gen Intel I9－14900KF Proceesor

RAM : 16GB

SSD : 512GB

Discrete Graphics card : 12GB GIGABYTE 4070

Input Voltage : AC 100~240V, 50hz-60hz

Onboard interface : 1 X RJ45, 2 X HDMI, 4 X USB2.0

Protype : Desktop / Floor standing / Interactive(Optional)

Contact Now

Factory Direct Ultra-clear Intelligent 55-inch embedded transparent oled touch screen

The 55-inch embedded transparent OLED touchscreen is designed for a wide range of industries, including museums, retail, transportation, and corporate environments. Featuring easy installation and customizable dimensions, this transparent OLED module is highly adaptable to diverse settings. It integrates effortlessly into various spaces while delivering an engaging, interactive experience.

Seamless Tiling

The 55-inch embedded transparent OLED touchscreen features an ultra-thin panel and a narrow-bezel design, ensuring minimal gaps when multiple units are combined. This design makes it the ideal choice for creating fluid, seamless video walls.

Rear Protection: Tempered Glass

OLED screens are inherently delicate. Adding a 55-inch tempered glass layer to the transparent OLED module offers numerous benefits. It provides enhanced impact resistance, shielding the screen from damage caused by drops or collisions. It also prevents scratches, cracks, and other forms of physical damage. This high-quality tempered glass is exceptionally clear and transparent; it does not alter the color fidelity or brightness of the OLED display.

Metal Bezel

This 55-inch transparent OLED display features a metal bezel design that enhances its aesthetic appeal, giving it a sleek and modern look. The metal bezel also serves a protective function, shielding the screen edges from daily wear and tear. Furthermore, it aids in heat dissipation, ensuring the display consistently operates at peak performance.

55-inch embedded OLED transparent screen
Panel size	55 inches.	Panel type		OLED

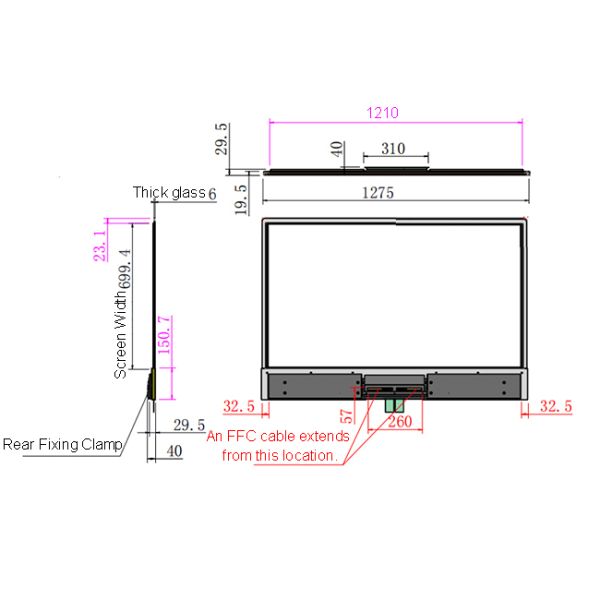

display area	1209.6 X 680.4mm	external dimensions		1221.5Mm × 699.35mm × 1.78mm (width × height × thickness)
transmittance	43%	viewing angle		178 °, 178 °
static contrast	100000:1 (Typ.) Transmission	Dynamic Contrast		200000:1 (Typ.) Transmission
patchwork	Unilateral 5.9mmm, bilateral 12mm, overall unilateral stitching 5.9/5 9/5.9/13 (left/right/top/bottom)	screen scale		16:9
brightness	200-600 (nits)	Best resolution		1920*1080
Screen life	≥ 30000 hours	power		≤ 190W
Display color	10-Bit, 1.07B (1B = 1 billion)	Speaker		8Ω/5W * 2
screen gross weight	Screen weight 2.4kg	Gross weight of the whole machine		to be determined
environment	Working temperature 1 ℃~ 45 ℃	working humidity		30%~80%
running time	18 hours x 7 days	Ambient height		(Altitude) 0~ 5000m
response time	8ms	working voltage		100V-240VAC, 50/60Hz
Fitting method	frame sticker	Fitting method (optional)		Full fit
Driver Board
input interface	HDMI IN	USB		USB 2.0
DP	DP IN	weight		0.4Kg
Control signal IN	RS232 serial port (RJ45)	Control signal OUT		RS232 serial port (RJ45)
function	With splicing function	protect		Anti-afterimage, anti-burn, repair function
Touch screen parameters: capacitance optional
touch technology	Capacitive touch technology	positioning accuracy		3Mm
Installation method	Built-in integrated	writing method		Finger ≥ 5mm
touch points	10 touch writing	Writing screen medium		5-8Mm tempered high transparency glass
response speed	≤ 5ms	computer driven		drive-free
mode of communication	USB	service life		≥ 60 million times
PC configuration (optional)
main board	Intel Core
CPU	4th generation/6th generation/7th generation/8th generation/10th generation - Core i3/i5/i7 (optional)
Memory	4G/8G/16G-DDR3 (optional)
Hard disk	SSD120G/240G/480-HDD500G/1T/2T (optional)
nuclear display	Intel HD Graphics 4000
Backplane I/O	1 × DC_IN power interface, 1 × HDMI interface, 1 × VGA interface, 2 × USB3.0 interface, 1 × LAN_RJ interface, 2 × USB2.0 interface, 1 × Mic (input), 1 × PHONE (output)
Operating System	Windows 7/Windows 10 operating system
Android configuration (optional)
Main board model	3568/3288/3588
Memory	2G/4G/8G optional
storage	16G/32G/64G/128G optional
interface	1 × USB2.0, 1 × USB3.0, 1 × DC_IN, 1 × HDMI_OUT, 1 × LAN_RJ, 1 × WIFI, 1 × 3.5 headphone socket, 1 × TFT socket
Packing and packing list
Package size	Honeycomb box: 140 * 37 * 93CM		Air box:/
Weight information	Bare metal weight: 40KG		Packing weight (bare metal + honeycomb box): 53KG
name	With PC/Android
	Specifications	quantity	Remarks
transparent display	55 inch OLED transparent screen	1 piece
system	Customized according to actual needs (built-in)	1 set
remote control	Universal version (without battery)	1
Power cord	National standard 1.5 meters	Article 1
HDMI extension cable Note ②	optional	Article 1
Touch the USB extension cable Note ②	optional	Article 1
HDMI signal cable Note ②	optional	Article 1
Warranty card certificate	Chinese version	1 sheet
Note: HDMI extension cable, HDMI cable and touch USB extension cable are optional items. The final packing list is subject to the actual shipment of the customer. You can choose whether to configure the extension cable according to customer needs. Note that the selection will incur corresponding costs. Please confirm the price for shipment.
