Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor

Product Categories

Shenzhen ZXT LCD Technology Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

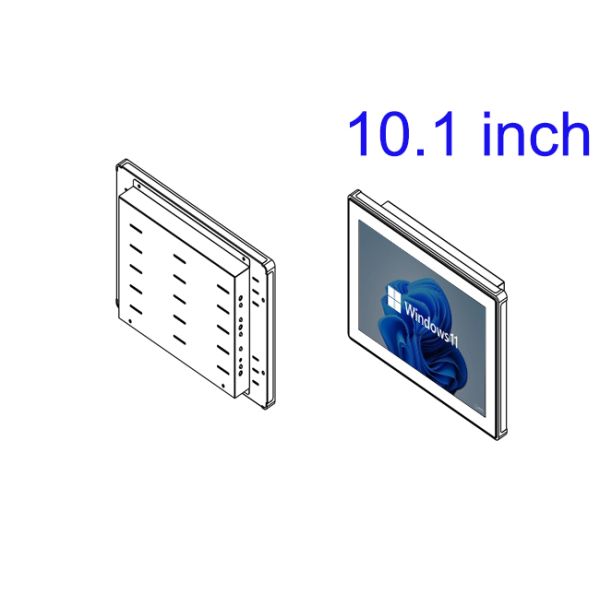

Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor

Name: Waterproof IP67 Display Embedded 101 Inch Wall Mount Capacitive Industrial LCD Monitor
Brand: ZXTLCD
Price: 1 USD

Quality Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor for sale

Operating Temperature : 0°C to 50°C

View Angle : 178°/178° (H/V)

80mm Thermal Printer : Support, built-in

Application : Hospitality, hotel and catering

Power Consumption : 80W

NFC Reader/scanner/QR reader : Support, built-in

Brand Name : ZXTLCD

Model Number : ZXTLCD-RM101SW

Certification : CE/Rohs/FCC

Place of Origin : Guangdong, China

MOQ : 1

Price : negotiable

Payment Terms : L/C,T/T

Supply Ability : 2000 pcs per month

Delivery Time : 3-5 working days

Packaging Details : wooden case, carton, flight cases are optional

Resolution : 1920 X 1080

Cabinet material : Metal case + Glass

Protype : Desktop / Floor standing /wall mounted(Optional)

Brightness : 350cd/m²

Passport Scanner : Optional

POS terminal installation : Resever space

Touch Screen : 10-point capacitive touch screen

Screen Size : 10.1 inch

Power Supply : AC 100~240V, 50hz-60hz

Panel type : BOE Original A+ Grade IPS

Contact Now

Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor

Embedded Industrial LCD Monitor: The 'Seamless Integration' Concept

The embedded Industrial LCD Monitor, guided by the principle of "seamless integration," serves as an invisible interactive hub for medical equipment, smart production lines, and public service terminals. It combines industrial-grade stability with spatial aesthetics, silently supporting the visual operation of critical equipment in harsh environments.

Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor

Industrial Design: Unobtrusive Integration into Equipment

The cold-rolLCD metal shell is formed through integrated stamping, with a thickness of only 48mm, allowing it to be seamlessly embedded into equipment cabinets such as medical detectors and CNC machines. A fanless cooling architecture, paired with honeycomb airflow vents, enables 72 hours of continuous operation without overheating (core temperature ≤50°C). Certified for -10°C to 60°C wide-temperature operation and IP54 protection, it resists frost in cold storage scanning terminals and withstands metal dust impact in foundry workshops.

Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor

Intelligent Software Ecosystem Driving Scenario Upgrades

Pre-instalLCD with Linux/Windows IoT systems and supporting OPC UA and Modbus TCP protocols, it can directly connect to PLC and MES systems. In medical scenarios, customized interfaces simultaneously display CT images and patient vital signs; in smart factories, data dashboards centrally showcase OEE (Overall Equipment Effectiveness) and energy consumption curves.

An open SDK toolkit allows customers to perform secondary development of UI interfaces and alarm logic, meeting rapid deployment needs for scenarios such as nucleic acid testing booths and government self-service kiosks.

Waterproof IP67 Display Embedded 10.1 Inch Wall Mount Capacitive Industrial LCD Monitor

Energy Efficiency and Durability Redefining Operational Value

Utilizing low-power LCD backlight modules (power consumption <18W) and industrial wide-voltage power supplies (12-24V DC), it reduces annual electricity costs by over 40% in 7×24 operational scenarios like airport self-check-in terminals and substation monitoring centers.

The metal shell, combined with an anti-corrosion coating, triples the device lifespan in salt-fog environments such as coastal ports and chemical workshops, extending maintenance cycles from 3 months to 2 years.

LCD Panel Parameters	Screen Size	10.1 Inch
	Display Area	217 mm.(Height) X 135.6(Width)mm.
	Aspect Ratio	16 : 9	16 : 10
	LCD Type	a-Si TFT-LCD Monitor	a-Si TFT-LCD Monitor
	Maximum Resolution	1280 X 800	1920 X 1200
	Display Color	16.7M, 50% NTSC	16.2M , 50% NTSC
	Brightness	400cd/m²	1000cd/m²
	Contrast Ratio	900 : 1	1000 :1
	Viewing Angle (Up/Down/Left/Right)	85°/85°/85°/85° (Type)(CR≥10)	80°/80°/80°/80° (Type)(CR≥10)
	Response Time	30ms	30ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	60Hertz
Audio parameters	Audio system	Stereo
	Speaker size	≈ 99 x 45 x 20 mm
	Impedance	8 Ohm
	Power	2 x 5 Watt
	Loudness	> 80 Decibel
	Interface	4-pin connector
Internal computer configuration (Choose one of two)	CPU	i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz	I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
	Graphics Card	Integrated Graphics Card Intel® HD 4600	Integrated Graphics Card Intel® HD 530
	RAM	4GB	8GB
	Storage Memory Capacity	128GB	256GB
	OS	Win10 or win11 Optional	Win10 or win11 Optional
	Wi-Fi Built-in	Speed 150Mbps 802.11n wifi Integrated	Speed 150Mbps 802.11n wifi Integrated
Media Format	Video Format	wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
	Audio Format	MP3, WMA
	Photo Format	BMP, JPEG, PNG, GIF etc.
Onboard Interface	Network port	RJ45 X 1, 10M/100M Adjustable Ethernet
	HDMI	1
	USB	4
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 15 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
	Storage Temperature	Below 10℃ ~ +60℃
	Stereo Speaker Length	1.5m
Package Size	Device Dimensions	259.62 X 177.62 X 41.6 mm.
	Net Weight	2 Kilogram
	Package Size	31 X 23.3 X 11Centimeter
	Gross Package Weight per Unit	4 Kilogram

From nucleic acid analyzers to smart warehouse robots, the Industrial LCD Monitor undertakes the interactive mission of critical equipment in an "invisible" manner. With rugged industrial-grade hardware and a flexible software ecosystem, it provides a cost-effective pivot for digital upgrades across industries.

if you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
