High-Strength Industrial Design, Rugged and Durable
The Equipment Wireless Monitor adopts an aluminum alloy front panel and sheet metal rear shell design. The front frame is precision-crafted from high-quality aluminum alloy with refined edge treatment, offering pressure resistance, impact resistance, corrosion resistance, and wear resistance, effectively protecting against oil, moisture, and dust in industrial environments. The rear shell utilizes a sheet metal coating process, not only enhancing the appearance with a strong, clean, and elegant texture but also improving the structural strength and service life of the entire machine.
It features dust resistance, water splash resistance, vibration resistance, and tolerance to high and low temperatures, ensuring stable operation in complex working conditions such as factories, warehouses, vending environments, and outdoor terminals, truly achieving all-weather industrial-grade application.
Stable Compatibility, User-Friendly Operation
This series of Equipment Wireless Monitor supports multiple system platforms, compatible with operating systems such as Windows, Linux, and Android. It adapts to various industrial configuration software, production control systems, and automated inquiry software, allowing customized configurations based on actual user needs.
Excellent system compatibility and powerful hardware-software synergy make it widely suitable for various industrial control terminals.
The user-friendly interface design and responsive touch experience significantly improve industrial operation efficiency, reduce training costs, and enable plug-and-play convenience with immediate familiarity.
Versatile Application Scenarios, Comprehensive Adaptability

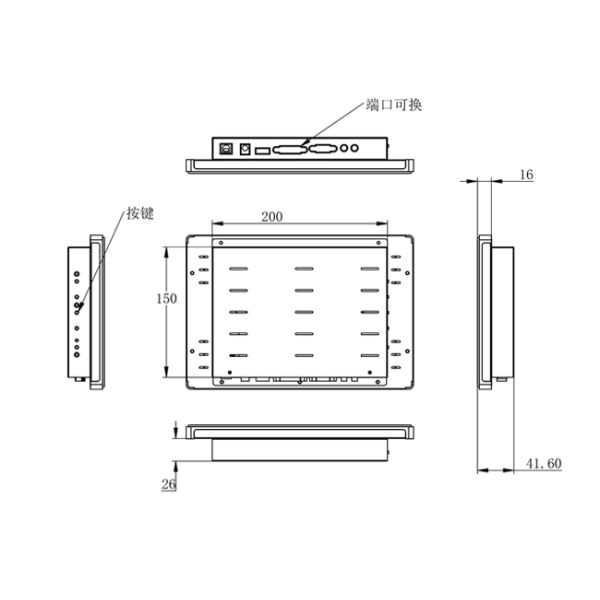

The product supports multiple installation methods, including embedded, wall-mounted, and desktop styles, meeting the structural requirements of terminal equipment in different industries.
Its flexible installation characteristics, combined with broad compatibility, enable outstanding performance in industrial automation, commercial terminal equipment, logistics management systems, production line control consoles, vending and self-service terminals, and other fields.
| LCD Panel Parameters |

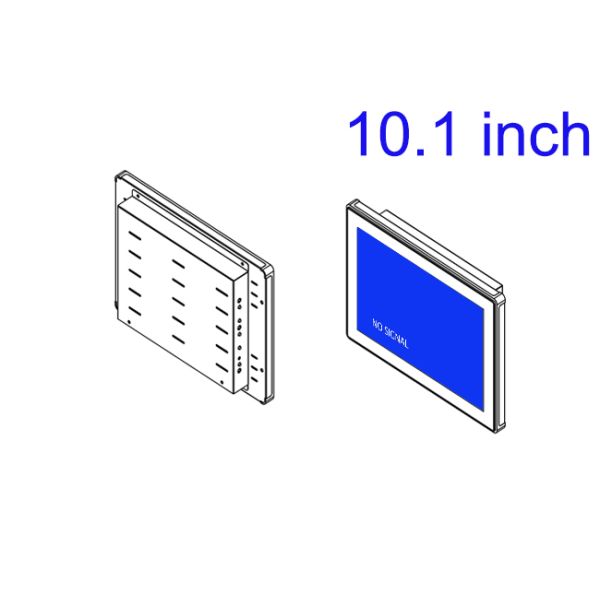

Screen Size |
10.1 Inch |
| Display Area |
217 mm.(Height) X 135.6(Width)mm. |
| Aspect Ratio |
16 : 9 |
16 : 10 |
| LCD Type |
a-Si TFT-LCD Monitor |
a-Si TFT-LCD Monitor |
| Maximum Resolution |
1280 X 800 |
1920 X 1200 |
| Display Color |
16.7M, 50% NTSC |
16.2M , 50% NTSC |
| Brightness |
400cd/m² |
1000cd/m² |
| Contrast Ratio |
900 : 1 |
1000 :1 |
| Viewing Angle (Up/Down/Left/Right) |
85°/85°/85°/85° (Type)(CR≥10) |
80°/80°/80°/80° (Type)(CR≥10) |
| Response Time |
30ms |
30ms |
| LCD Panel Lifespan (Hours) |
60,000(Hour.) |
| Field Frequency |
60Hertz |
Audio Parameters
(External Speaker Option) |
Audio system |
Stereo |
| Speaker size |
≈ 99 x 45 x 20 mm |
| Impedance |
8 Ohm |
| Power |
2 x 5 Watt |
| Loudness |
> 80 Decibel |
| Interface |
4-pin connector |
| Onboard Interface |
HDMI Input |
1 |
| VGA Input |
1 |
| DVI Input |
1 |
| USB Type B or any desired USB Type |
1 |
| Power |
Power Supply |
Alternating Current 100V~240V, 50/60Hz |
| Maximum Power Loss |
≤ 15 Watt |
| Standby Mode Power Loss |
< 1 Watt |
| Features |
Operating Temperature |
0℃ ~ 50℃ |
| Storage Temperature |
Below 10℃ ~ +60℃ |
| Accessories |
Power Cord Length |
1.5m |
| HDMI Cable Length |
2m |
| USB-A to USB-B Cable Length |
1.5m |
| Stereo Speaker Size with Connector |
99*45*20mm |
| Stereo Speaker Length |
1.5m |
| Package Size |

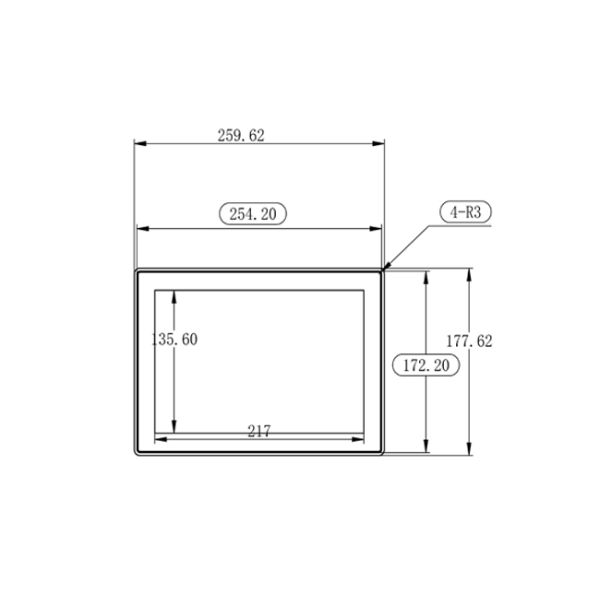

Device Dimensions |
259.62 X 172.2 X 41.6 mm. |
| Net Weight |
2 Kilogram |
| Package Size |
31 X 23.3 X 11Centimeter |
| Gross Package Weight per Unit |
4 Kilogram |
The Equipment Wireless Monitor in the HMI all-in-one field is not just a simple display screen but an intelligent terminal integrating display, control, and data interaction. With its high reliability, high expandability, and high compatibility, it has become a key core device for many enterprises advancing industrial digital upgrades.
