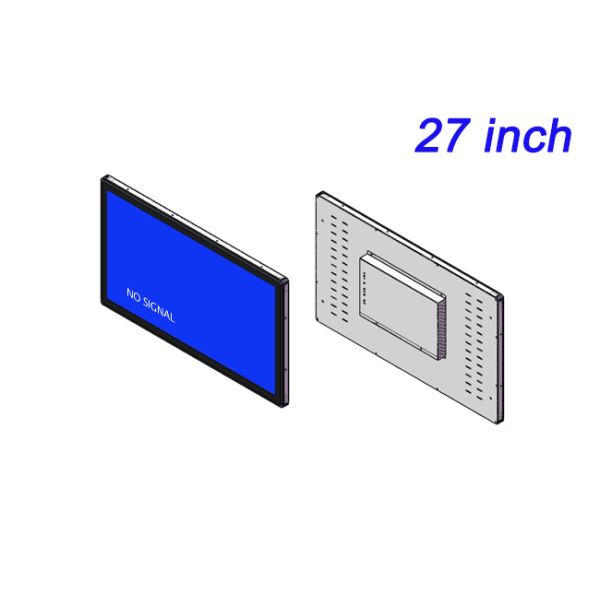

Flush Edge Design for Seamless Integration
The device features a 3MM narrow front bezel design with slim edges and a flat panel structure, allowing easy external embedded installation. It integrates perfectly into control consoles, equipment cabinets, or various operation panels, delivering visual consistency and structural robustness.
Whether for industrial environments or commercial terminal projects, it demonstrates exceptional integrated harmony.
Multi-Scenario Installation to Freely Match Requirements
It supports diverse installation methods, including desktop placement, wall mounting, rack mounting, pendant arms, telescopic brackets, and embedded integration, meeting varied engineering deployment needs.
The housing is available in two standard colors—black and silver—combining minimalist elegance with industrial aesthetics and environmental adaptability.
High-Performance Configuration for Harsh Environments
Utilizing a fully sealed, fanless metal housing structure, it offers excellent dustproof, waterproof, and oil-resistant properties, enabling stable operation in harsh conditions such as high temperatures, dusty areas, and humidity.
The device supports wide-temperature (-20~60°C) and wide-voltage (9-36V) input, making it suitable for special environments like vehicles, ships, power equipment, EMS production lines, and AI terminals.
Flexible System Options for Broad Compatibility
It offers optional Android, Windows, and Linux systems, along with versions supporting non-touch, resistive touch, or capacitive touch screens.
With rich built-in interfaces, including preset HDMI, VGA, USB, COM, and LAN ports, it can also be customized to easily connect to host computers, sensors, PLCs, and other equipment, ensuring strong compatibility and expandability.
Stable Output with Strong Anti-Interference
Equipped with an industrial-grade display panel, it supports high-definition output with detailed image quality and true colors. It features anti-interference, anti-static, and electromagnetic shielding properties, maintaining stable and clear visuals even in high-frequency equipment rooms or complex electrical environments, with no crashes or lag during prolonged operation.
| LCD Panel Parameters | Screen Size | 27 Inch |
| Display Area | 597.6 mm (Height) X 336.15 mm (Width) |
| Aspect Ratio | 16 : 9 | 16 : 9 |
| LCD Type | a-Si TFT-LCD Monitor | a-Si TFT-LCD Monitor |
| Maximum Resolution | 1920 X 1080 | 3840 X 2160 |
| Display Color | 16.7m , 99% sRGB | 1.07B , 95% DCI-P3 |
| Brightness | 300cd/m² | 400cd/m² |
| Contrast Ratio | 1000 : 1 | 1000 :1 |
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | 89°/89°/89°/89°(Type)(CR≥10) |
| Response Time | 14ms | 14ms |
| LCD Panel Lifespan (Hours) | 60,000(Hour.) |
| Field Frequency | 60Hertz |
Audio Parameters
(External Speaker Option) | Audio system | Stereo |
| Speaker size | ≈ 99 x 45 x 20 mm |
| Impedance | 8 Ohm |
| Power | 2 x 5 Watt |
| Loudness | > 80 Decibel |
| Interface | 4-pin connector |
| Onboard Interface | HDMI Input | 1 |
| VGA Input | 1 |
| DVI Input | 1 |
| USB Type B or any desired USB Type | 1 |
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz |
| Maximum Power Loss | ≤ 45 Watt |
| Standby Mode Power Loss | < 1 Watt |
| Features | Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | Below 10℃ ~ +60℃ |
| Accessories | Power Cord Length | 1.5m |
| HDMI Cable Length | 2m |
| USB-A to USB-B Cable Length | 1.5m |
| Stereo Speaker Size with Connector | 99*45*20 mm |
| Stereo Speaker Length | 1.5m |
| Package Size | Device Dimensions | 652 X 392 X 51.7 mm. |
| Net Weight | 10 Kilogram |
| Package Size | 72.3 X 47 X 12Centimeter |
| Gross Package Weight per Unit | 11 Kilogram |
The Externally Industrial Embedded LCD Screen is not just a high-resolution screen but a highly integrated, stable, and reliable industrial control window. It seamlessly integrates into your smart systems, helping industrial control step into a new phase of efficiency, intelligence, and reliability.
